Using Microsoft Power Apps and Logic Flows to Query Log Analytics

power bi engineer

PowerApps with Logic Flow simplify the task of querying Azure Log Analytics.

This tutorial will show you how easy it is to create a PowerApps application and use Microsoft Power Apps and Logic Flows to query logs for better analysis.

The application does the following

Queries Azure Log Analytics

– Generates a chart result.

– Sends an email with the visualization embedded.

Creating the application

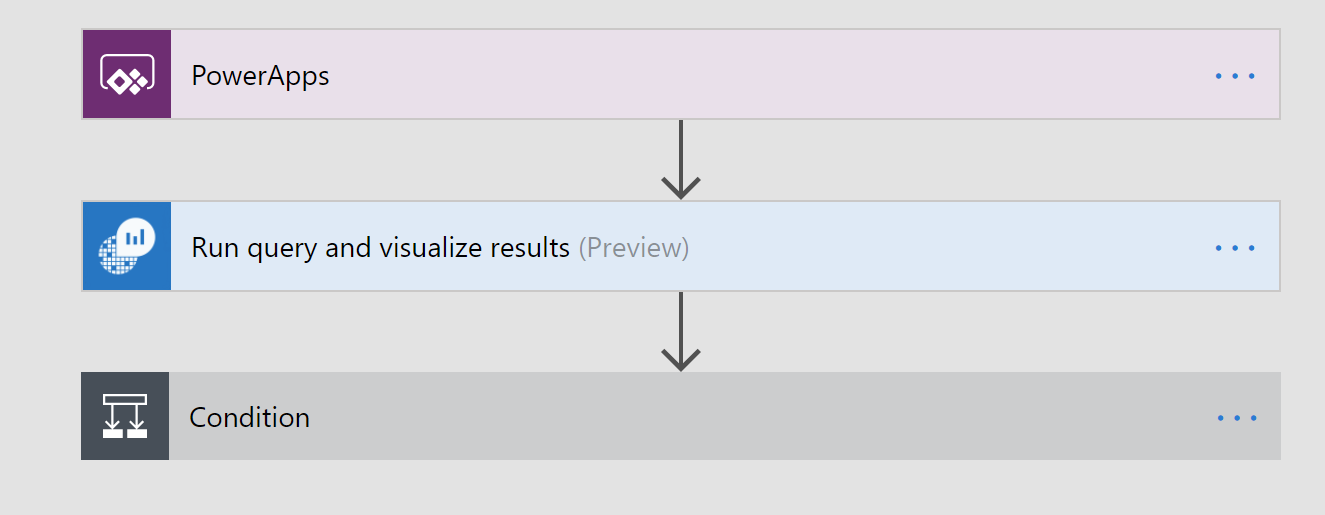

The following figure shows the workflow steps.

microsoft power apps and logic flows

The steps to create the workflow are:

  1. Use a PowerApps button to start the process.
  2. Add the Azure Log Analytics action as shown below
microsoft power apps and logic flows

A. Select Run Query and visualize results

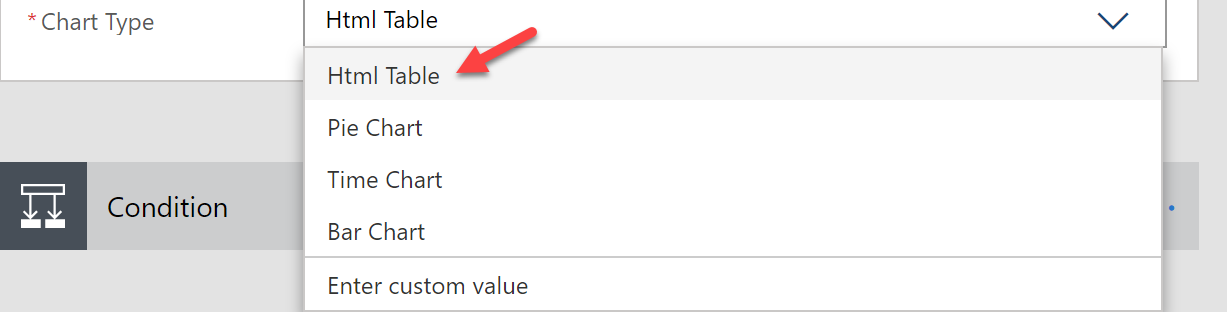

Select the Html Table Chart Type as shown below.

microsoft power apps and logic flows

3. Add a Condition to validate that the records exist

 @not(equals(length(body('Run_query_and_visualize_results')?['body']), 0))

A. if Yes then use the  Office 365 action to send a email

microsoft power apps and logic flows

 B. If No then add a Terminate action with a Cancelled value

4. Click Save.

{
"records":  [

{
"time":  "2018-02-02T18:21:52.7720997Z",
"resourceId":
"/SUBSCRIPTIONS/XXXXXXXXXXXXXXXXXXXXXXX/RESOURCEGROUPS/FHIR/PROVIDERS/MICROSOFT.DOCUMENTDB/DATAB

"category":  "DataPlaneRequests", "operationName":  "ReadFeed",
"properties":  {"activityId":  "4e22c5e3-3169-4e02-a6b5-84fd69284e28","requestResourceType": "Document","requestResourceId":  "jdUKAPpYJQA=","collectionRid":  "jdUKAPpYJQA=","statusCode": "304","duration":  "4092","userAgent":  "documentdb-dotnet-sdk/1.17.0  Host/64-bit MicrosoftWindowsNT/6.2.9200.0changefeed-0.2","clientIpAddress": "23.101.171.0","requestCharge":  "1.000","requestLength":  "0","responseLength": "0","resourceTokenUserRid":  "","region":  "Central  US","partitionId":  "6a6ca36b-7a1d-42b5-b866- 3e5eed09186e"}
}
,
{
"time":  "2018-02-02T18:22:54.2597286Z",
"resourceId": "/SUBSCRIPTIONS/XXXXXXXXX/RESOURCEGROUPS/FHIR/PROVIDERS/MICROSOFT.DOCUMENTDB/DATABASEACCOUNTS/FH

"category":  "DataPlaneRequests", "operationName":  "ReadFeed",
"properties":  {"activityId":  "8d2dc86b-e7dc-4727-bab2-b8d3986b298e","requestResourceType": "Document","requestResourceId":  "jdUKAPpYJQA=","collectionRid":  "jdUKAPpYJQA=","statusCode": "304","duration":  "3885","userAgent":  "documentdb-dotnet-sdk/1.17.0  Host/64-bit


MicrosoftWindowsNT/6.2.9200.0changefeed-0.2","clientIpAddress": "23.101.171.0","requestCharge":  "1.000","requestLength":  "0","responseLength": "0","resourceTokenUserRid":  "","region":  "Central  US","partitionId":  "6a6ca36b-7a1d-42b5-b866- 3e5eed09186e"}
}
,
{
"time":  "2018-02-02T18:24:06.0068309Z",
"resourceId": "/SUBSCRIPTIONS/XXXXXXXXX/RESOURCEGROUPS/FHIR/PROVIDERS/MICROSOFT.DOCUMENTDB/DATABASEACCOUNTS/FH

"category":  "DataPlaneRequests", "operationName":  "ReadFeed",
"properties":  {"activityId":  "cc5a0c11-a523-47c9-9a91-d0889cfae4b6","requestResourceType": "Document","requestResourceId":  "jdUKAPpYJQA=","collectionRid":  "jdUKAPpYJQA=","statusCode": "304","duration":  "4181","userAgent":  "documentdb-dotnet-sdk/1.17.0  Host/64-bit MicrosoftWindowsNT/6.2.9200.0changefeed-0.2","clientIpAddress": "23.101.171.0","requestCharge":  "1.000","requestLength":  "0","responseLength": "0","resourceTokenUserRid":  "","region":  "Central  US","partitionId":  "6a6ca36b-7a1d-42b5-b866- 3e5eed09186e"}
}
,
{
"time":  "2018-02-02T18:24:16.2453179Z",
"resourceId": "/SUBSCRIPTIONS/XXXXXXXXX/RESOURCEGROUPS/FHIR/PROVIDERS/MICROSOFT.DOCUMENTDB/DATABASEACCOUNTS/FH

"category":  "DataPlaneRequests", "operationName":  "ReadFeed",
"properties":  {"activityId":  "6f3249cb-d3e3-4756-872c-5de5f6b7a291","requestResourceType": "Document","requestResourceId":  "jdUKAPpYJQA=","collectionRid":  "jdUKAPpYJQA=","statusCode": "304","duration":  "2810","userAgent":  "documentdb-dotnet-sdk/1.17.0  Host/64-bit MicrosoftWindowsNT/6.2.9200.0changefeed-0.2","clientIpAddress": "23.101.171.0","requestCharge":  "1.000","requestLength":  "0","responseLength": "0","resourceTokenUserRid":  "","region":  "Central  US","partitionId":  "6a6ca36b-7a1d-42b5-b866- 3e5eed09186e"}
}
]
}

Testing our Workflow

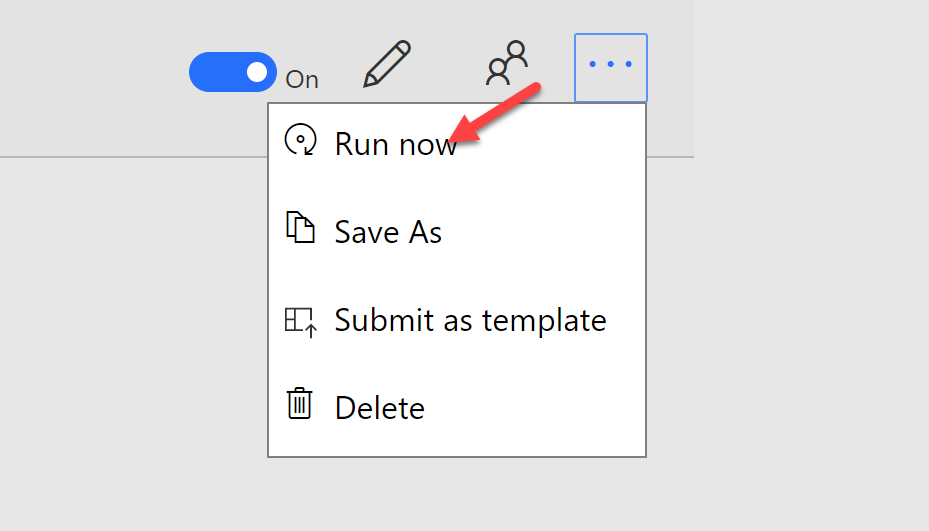

 1. Start by clicking Run now as shown below.

microsoft power apps and logic flows

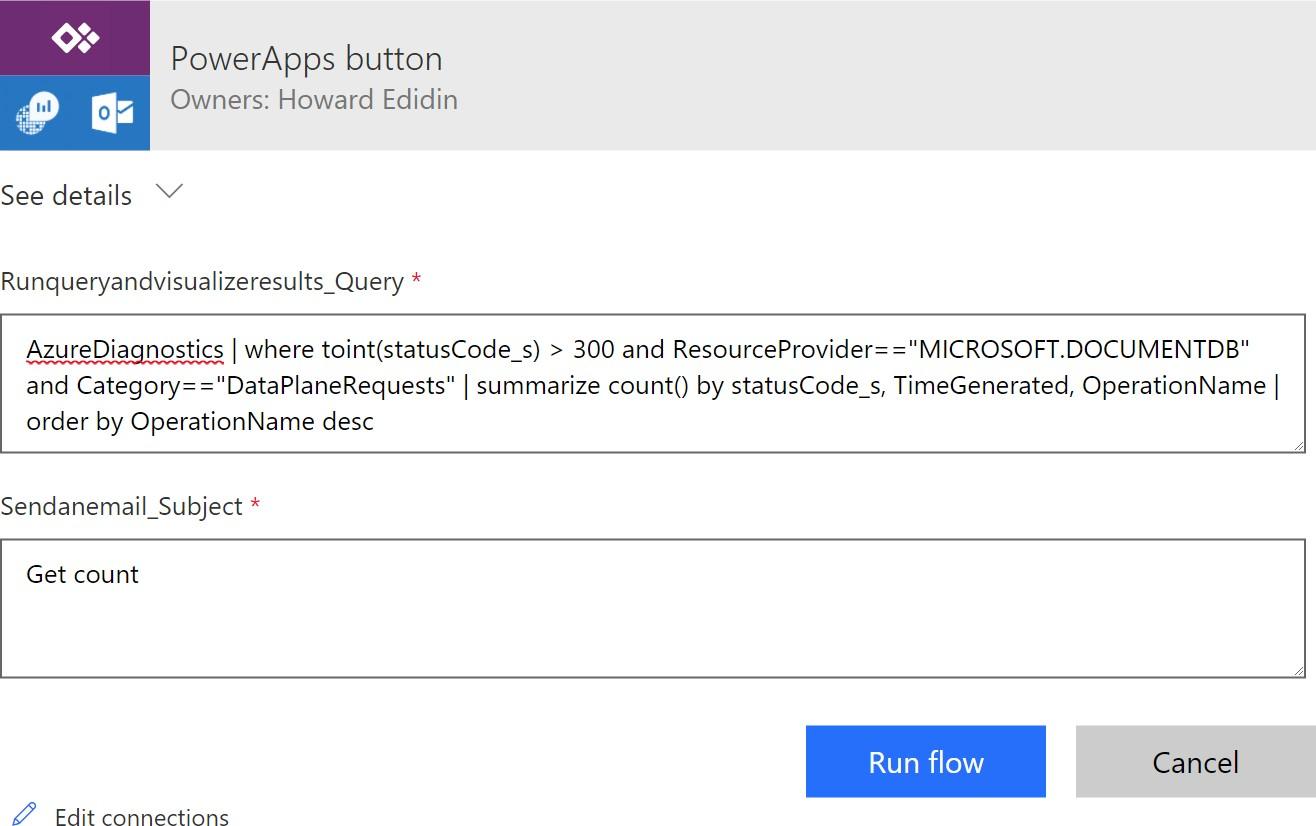

2. Enter our query and email subject as shown in the following figure.

microsoft power apps and logic flows

 INFO: You can read more about Log Analytics searches here

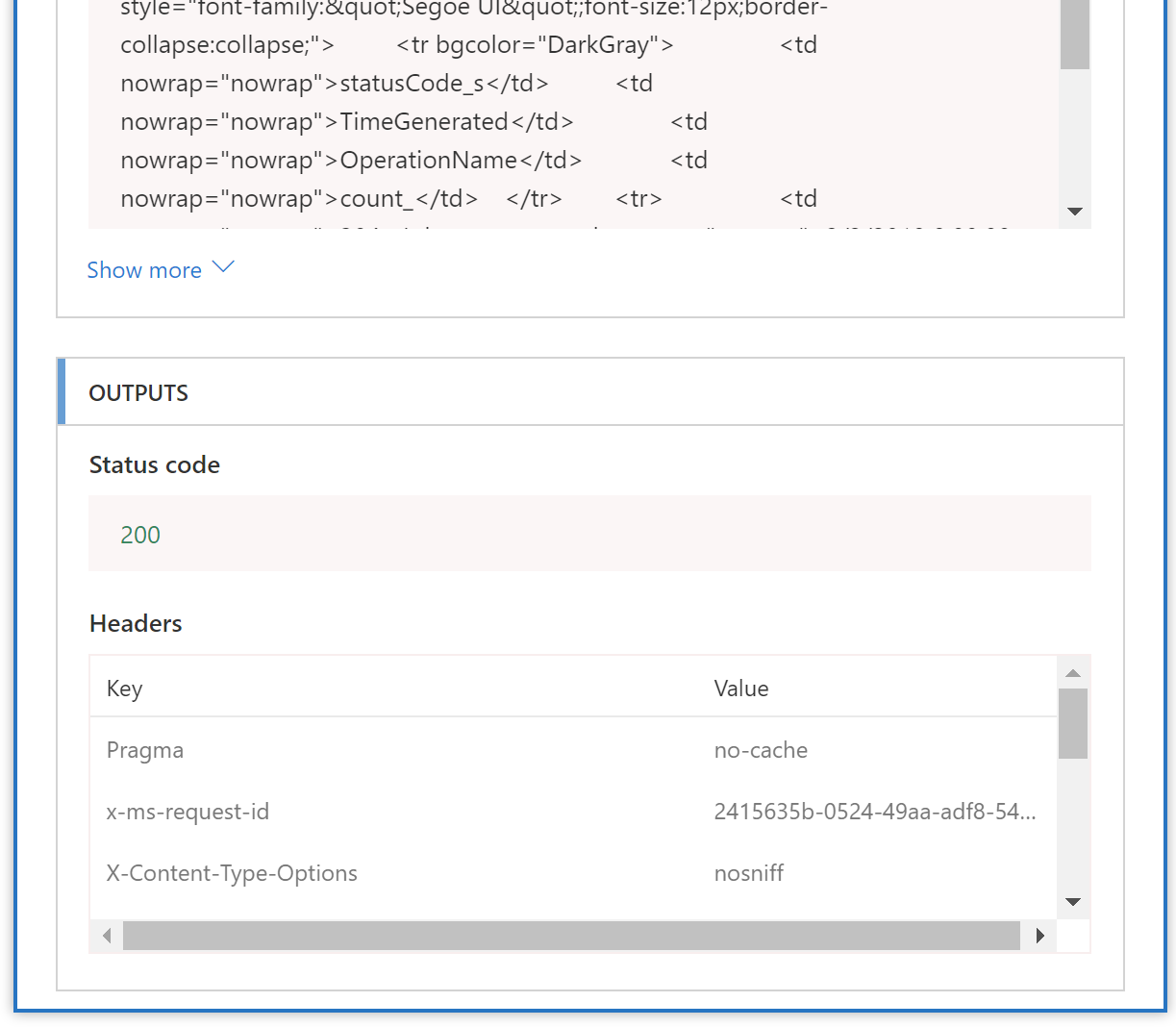

3. After clicking on Run flow, we can view the process results.

Checking our email, we can see the results.


OUTPUTS

Runqueryandvisua lizeresu Its_Query

AzureD iagnost ics I where to int(statusC ode_s) > 300 and ResourceProvider==" MICROSOFT.DOCU M ENTDB" and
Catego ry=="DataPlaneRequests " I su mmarize count () by statusCode_s ,
TimeGenerate d, Operation Name I order by OperationName desc
microsoft power apps and logic flows

Monitoring our Workflow

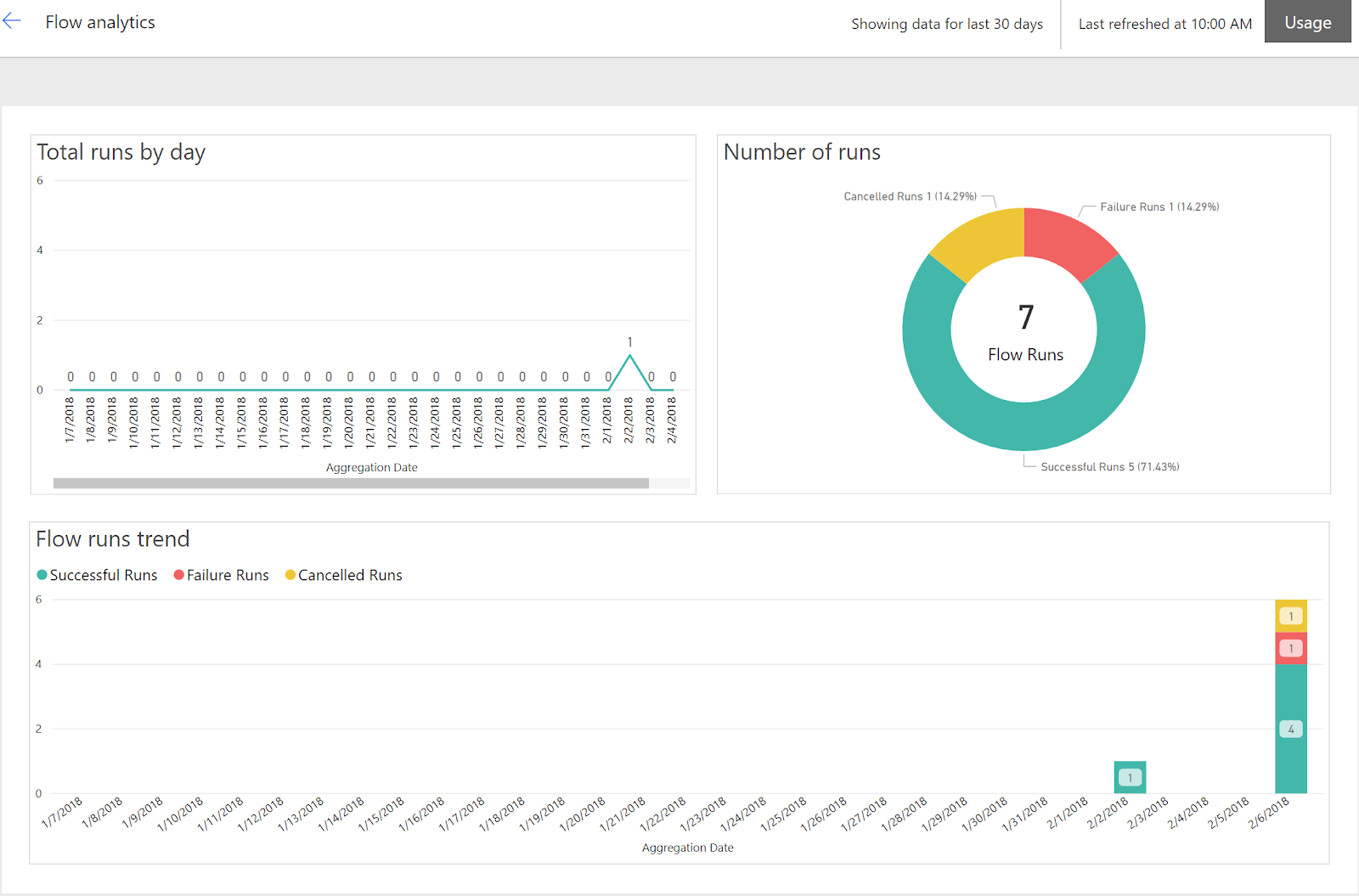

We can view the Flow Analytics as shown below.

microsoft power apps and logic flows

Finally we can view our Flow administration

microsoft power apps and logic flows

Summary

– You have seen how easy it is to create a Microsoft Power Apps with Logic Flows application

– You can create custom log searches.

– You can edit the flow to change the chart type

– You can extend the flow to add more actions.

– You can easily modify the data connections.

  • You can ready more about Microsoft PowerApps/Flows here
